- Economical.
- Compact and lightweight.
- Easy to install.
- Maintenance-free.
- Three size groups: small, medium and large.
- Unitized construction.

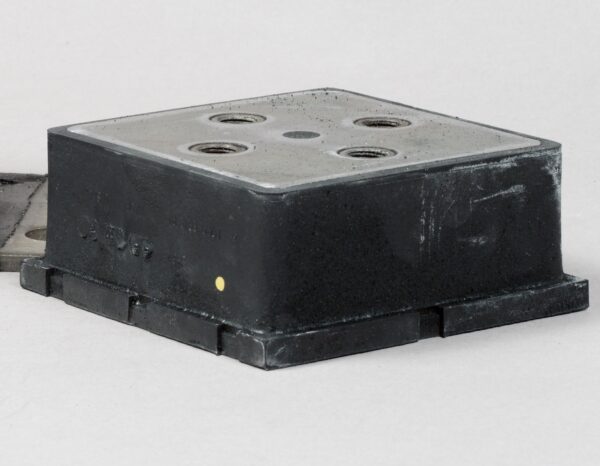

J-5130-1 Square Pad Mount
Item #:
J-5130-1
/
Manufacturer:
Lord Corporation
Economical. Compact and lightweight. Easy to install. Maintenance-free. Three size groups: small, medium and large. Unitized construction.
Need a custom part similar to J-5130-1? Simply click to ‘Add to Quote Cart’ below and share your project information in the quote checkout. You can also give us a call at 888-842-5668.
Highlights
Spec Table
| A (Imperial) | 4.75 |
| B (Imperial) | 4.75 |
| C (Imperial) | 2.62 |
| Compression Spring Rate Kc (Imperial) | 17300 |
| Compression Spring Rate Kc (Metric) | 3030 |
| Compression Static Load (Imperial) | 4130 |
| Compression Static Load (Metric) | 18371 |
| D (Imperial) | 2.12 |
| E (Imperial) | 5.12 |
| Elastomer | Oil Resistant Elastomer – Neoprene |
| F (Imperial) | 0.53 |
| F (Metric) | 13.5 |
| Grade per SAE J429 | 2 |
| Manufacturer | Lord Corporation |
| Shear Spring Rate Ks (Imperial) | 2000 |
| Shear Spring Rate Ks (Metric) | 350 |
| Shear Static Load (Imperial) | 550 |
| Shear Static Load (Metric) | 2447 |
| Thread Size | 1/2-20 UNC |
| Type | 4L |
