- Economical.
- Offer improved reliability in environments where harsh vibration and shock occur.
- Space saving.
- Oil resistant.
- Effective vibration isolation and shock protection for light load applications.
J-3112-1-3 Grommet Isolators Standard
Item #:
J-3112-1-3
/
Manufacturer:
Lord Grommet Isolators provide effective, economical vibration isolation for light loads. They are suitable for commercial and military applications including computers, disk drives, business machines, precision instrumentation and general industrial equipment.Lord Grommet Isolators are designed and produced with the same kind of precision and care as our high performance bonded elastomeric mounts. This provides close…
Need a custom part similar to J-3112-1-3? Simply click to ‘Add to Quote Cart’ below and share your project information in the quote checkout. You can also give us a call at 888-842-5668.
Highlights
Spec Table
| Axial Static Spring Rate (Imperial) | 50 |
| Axial Static Spring Rate (Metric) | 8.8 |
| Diameter (Imperial) | 0.555 |
| Elastomer | Neoprene, Oil Resistant |

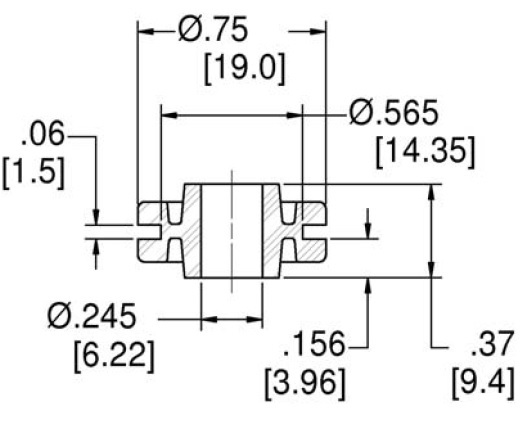

| Figure | 1 |
| Length (Imperial) | 0.365 |
| Length (Metric) | 9.3 |
| Max Axial Load Rating (Imperial) | 3 |
| Max Axial Load Rating (Metric) | 13 |
| Radial Static Spring Rate (Imperial) | 100 |
| Radial Static Spring Rate (Metric) | 17.5 |
| Spacer Length (Imperial) | 0.365 |
| Spacer Length (Metric) | 9.3 |
| Spacer OD (Imperial) | 0.255 |
| Spacer OD (Metric) | 6.5 |
| Support Member Plate Diameter (Imperial) | 0.555 |
| Support Member Plate Diameter (Metric) | 14.1 |
| Support Member Plate Thickness (Imperial) | 0.062 |
| Support Member Plate Thickness (Metric) | 1.6 |
| Thickness (Imperial) | 0.062 |
| Thickness (Metric) | 1.6 |
