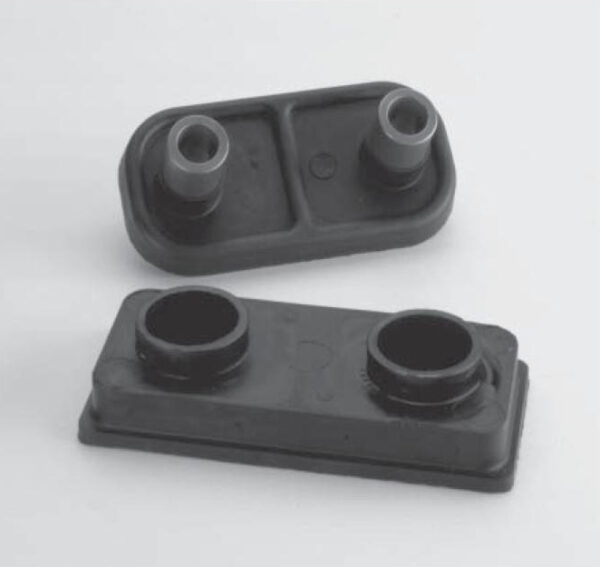

J-21246-12 Binocular Engine Mounts
Item #:
J-21246-12
/
Manufacturer:
Need a custom part similar to J-21246-12? Simply click to ‘Add to Quote Cart’ below and share your project information in the quote checkout. You can also give us a call at 888-842-5668.
Highlights
Spec Table
| Deflection at Rated Load (Imperial) | 0.054 |
| Deflection at Rated Load (Metric) | 1.37 |
| Lateral Stiffness (Imperial) | 1400 |
| Lateral Stiffness (Metric) | 245 |

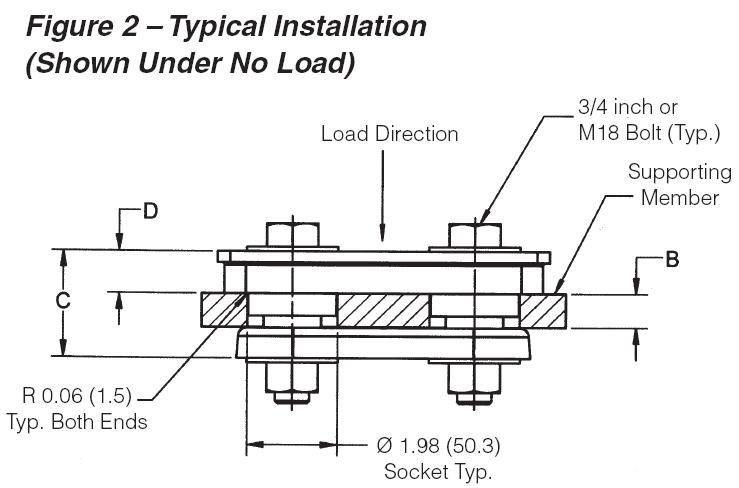

| Overall Height (C) (Imperial) | 2.66 |
| Overall Height (C) (Metric) | 67.6 |
| Rated Vertical Load (Imperial) | 1000 |
| Rated Vertical Load (Metric) | 4448 |

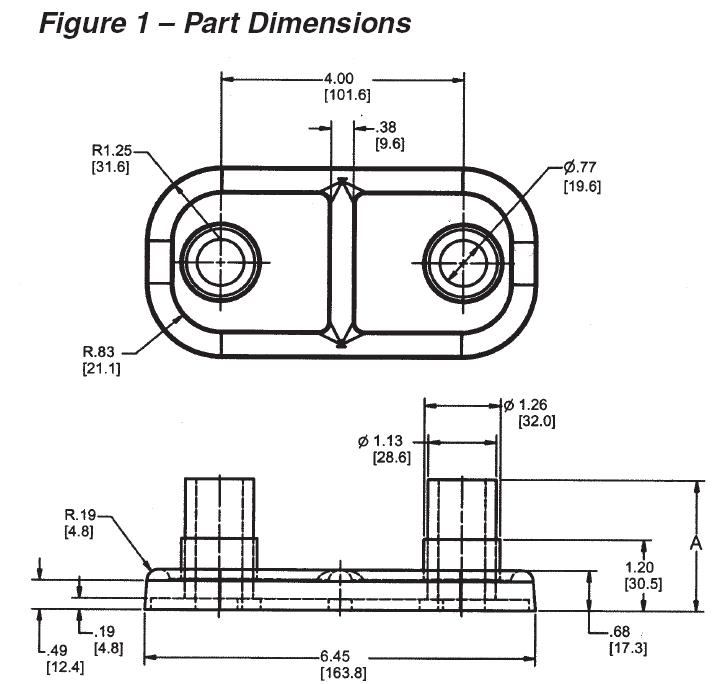

| Sleeve Length (A) (Imperial) | 2.48 |
| Sleeve Length (A) (Metric) | 62.9 |
| Socket Thickness (B) (Imperial) | 0.63 |
| Socket Thickness (B) (Metric) | 16 |
| Total Height (C) (Imperial) | 2.66 |
| Upper Part Thickness (D) (Imperial) | 1.34 |
| Upper Part Thickness (D) (Metric) | 34 |
| Vertical Stiffness (Imperial) | 17647 |
| Vertical Stiffness (Metric) | 3090 |
